Overlay hinge S-08 H-0 hydraulic
Leave feedback on the product
Product code: 20110
Zadzwoń i zamów
Opis

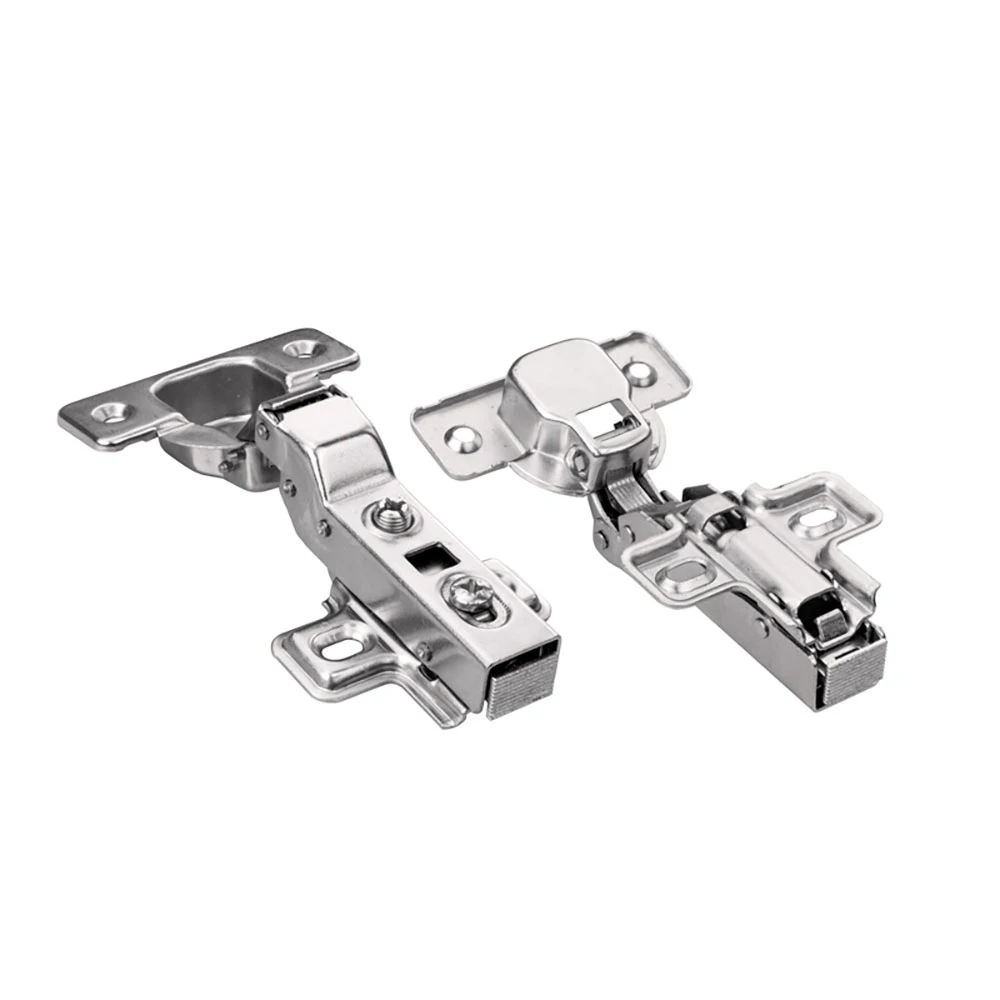

Hydraulic half overlay hinge ⌀35 mm S-08 with H-0 CLIP-ON mounting plate - Nickel-plated steel
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ Half overlay hinge
Half overlay hinges are used when two adjacent wings share a single furniture body. In other words, they are used when two cabinet doors share a middle partition.
✔ Built-in SoftClose system
The SoftClose system ensures gentle and silent closing of cabinet doors. It eliminates slamming, improving everyday comfort.
✔ H-0 CLIP-ON mounting plate
The CLIP-ON plate enables quick and easy installation and removal of the cabinet front. The “click” mechanism speeds up work significantly, allowing tool-free attachment and detachment of fronts.
✔ Made of nickel-plated steel
Made of nickel-plated steel, the hinge is highly resistant to damage and corrosion, maintaining its properties and modern appearance for a long time.

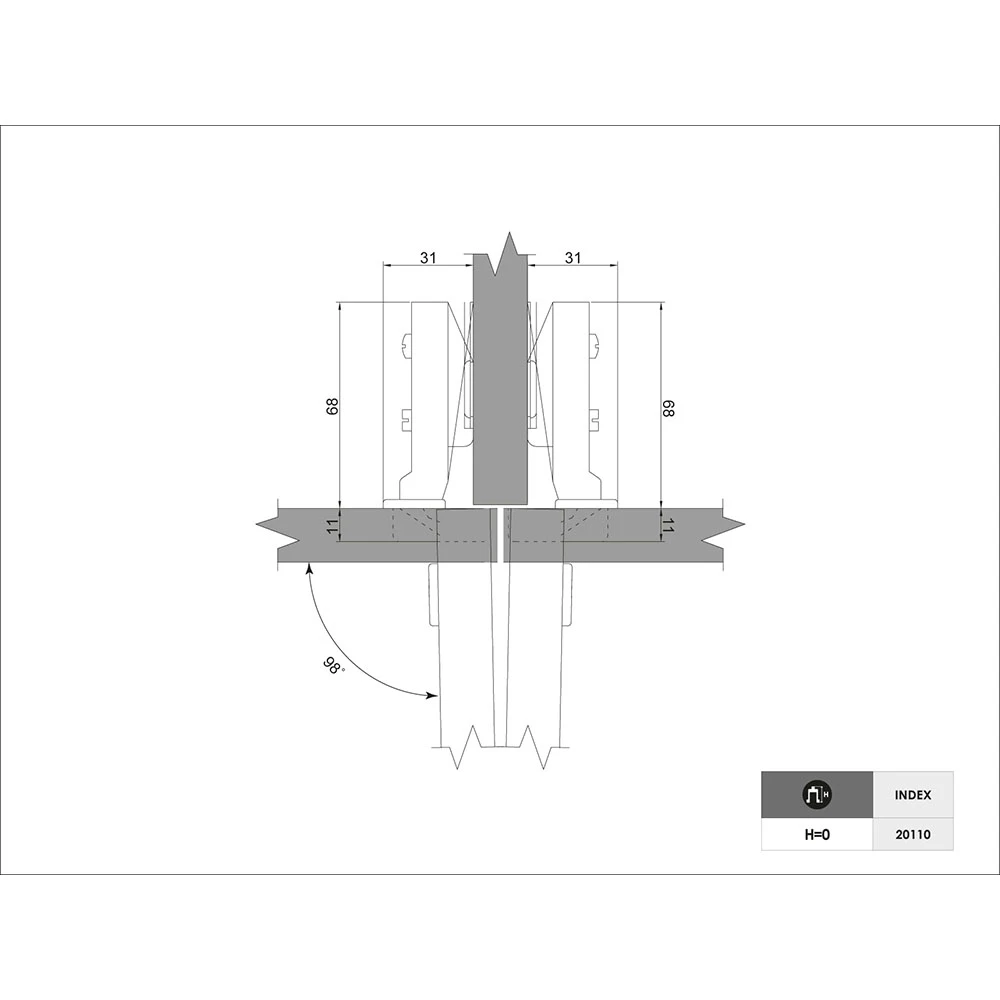

✔ 98° opening angle
The S-08 hinge allows smooth and even closing of cabinet fronts. The opening angle of up to 98° improves usability by providing easy access to the cabinet interior.
Technical specifications:
- ☛ Brand: ATM
- ☛ Model: S-08
- ☛ Color: Chrome
- ☛ H-0 CLIP-ON mounting plate
- ☛ Soft-close system
- ☛ Hinge type: Half overlay
- ☛ Cup diameter: 35 mm
- ☛ Hole spacing: 45 mm
- ☛ Material: Nickel-plated steel
Set includes:
- S-08 half overlay (hydraulic) hinge - 1 pc
- H-0 CLIP-ON mounting plate - 1 pc
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
