Overlay hinge ATM XS-08 H0 hydraulic
Leave feedback on the product
Product code: 35508
Zadzwoń i zamów
Opis

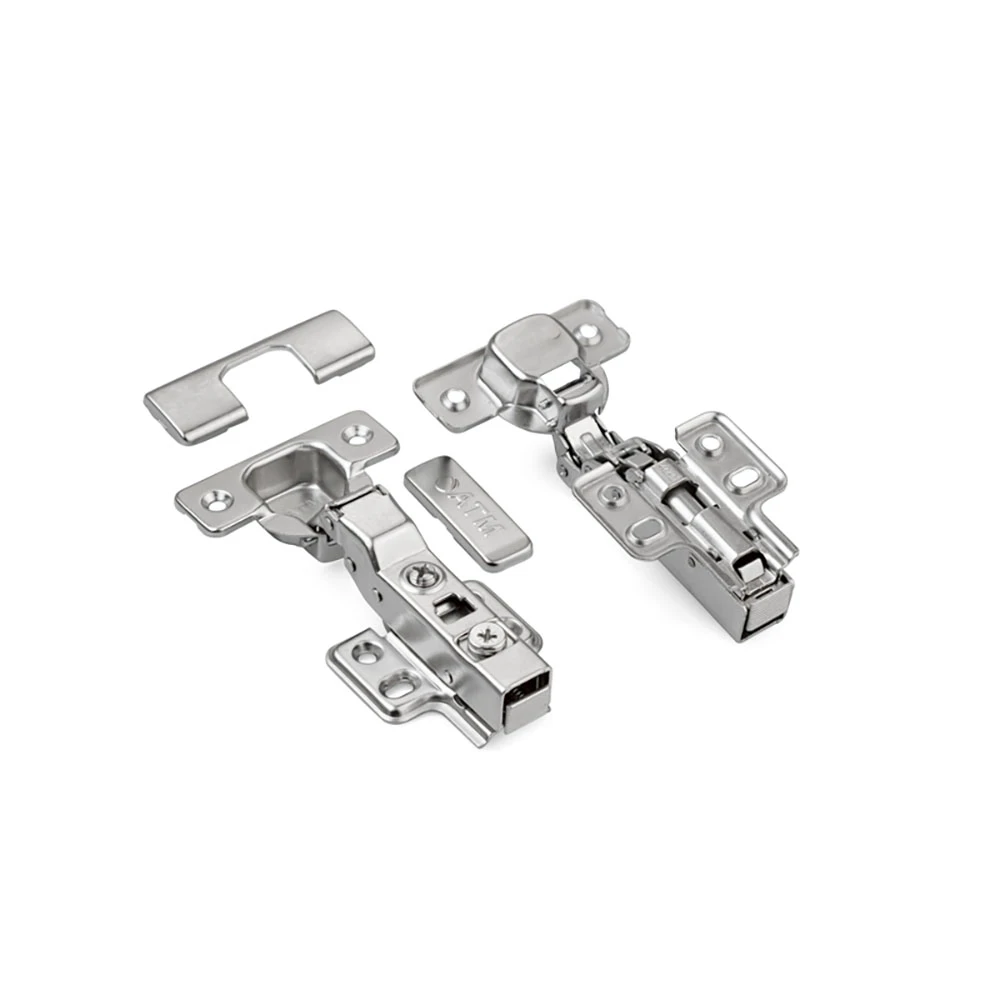

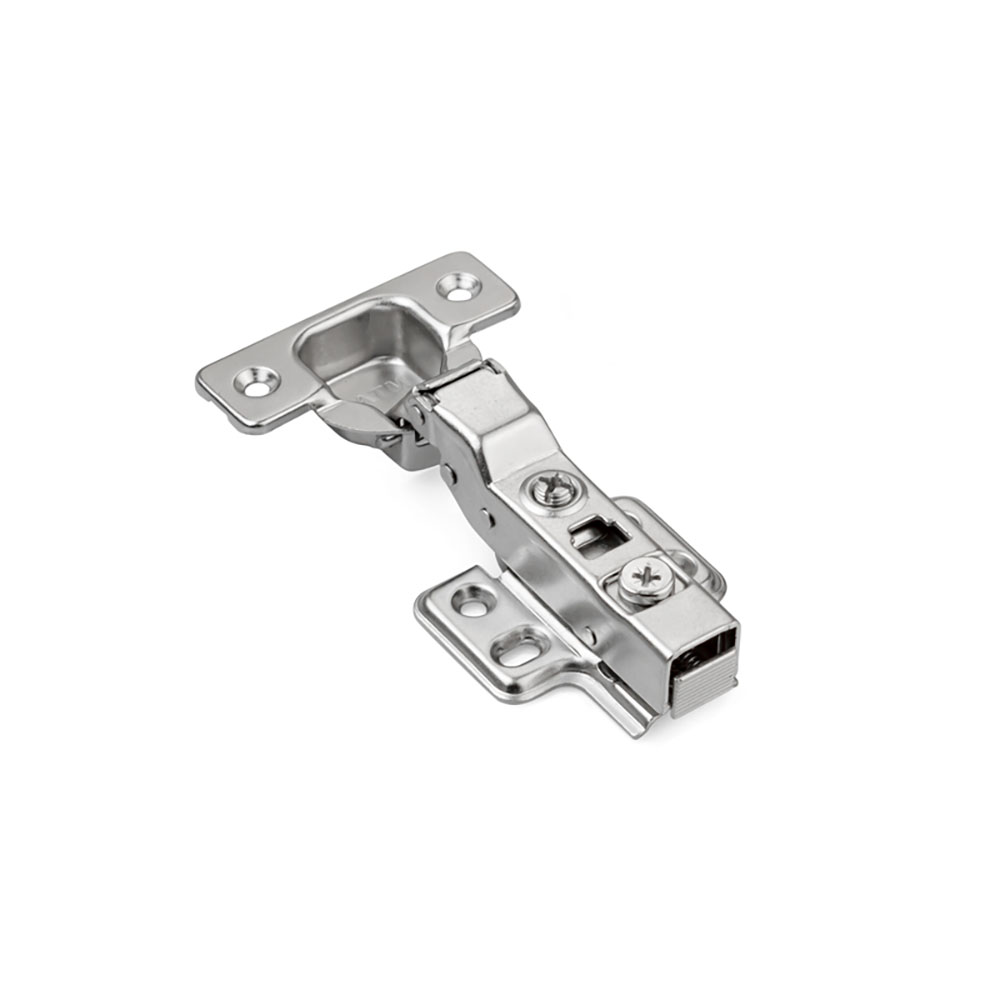

Hydraulic half overlay furniture hinge XS-08 (⌀ 35 mm) with H-0 CLIP-ON mounting plate - soft close, certified for 50,000 cycles
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ Half overlay hinge
Half overlay hinges are used when two adjacent wings share a single furniture body. In other words, they are used when two cabinet doors share a middle partition.
✔ Neutral cup movement - even door opening
A distinctive feature of the XS series is the smooth and light movement of the hinge throughout the opening and closing cycle. Neutral cup motion ensures even door opening (eliminating door wobble), and prevents sudden stops or jerks.
✔ Soft close
Hinges from the XS series are equipped with a SoftClose silent closing system, which minimizes noise and prevents slamming. This protects the furniture from damage and allows doors to open and close silently.
✔ H-0 CLIP-ON mounting plate
The CLIP-ON plate enables quick and easy installation and removal of cabinet fronts. The click-on mechanism significantly speeds up work, allowing for tool-free attachment and detachment of doors.
✔ Made of galvanized steel
Made of high-quality galvanized steel, hinges from the XS series are resistant to corrosion and mechanical damage, ensuring durability and reliability over time.
✔ Certified for 50,000 cycles!
Hinges from the XS series are backed by a quality guarantee and reliable performance for up to 50,000 cycles.
Technical data:
- ☛ Brand: ATM
- ☛ Model: XS-08
- ☛ Cup diameter: 35 mm
- ☛ Hole spacing in cup: 45 mm
- ☛ Soft close
- ☛ Even front movement
- ☛ CLIP-ON plate - easy installation and removal
- ☛ Quality guarantee for 50,000 cycles
- ☛ Material: Galvanized steel

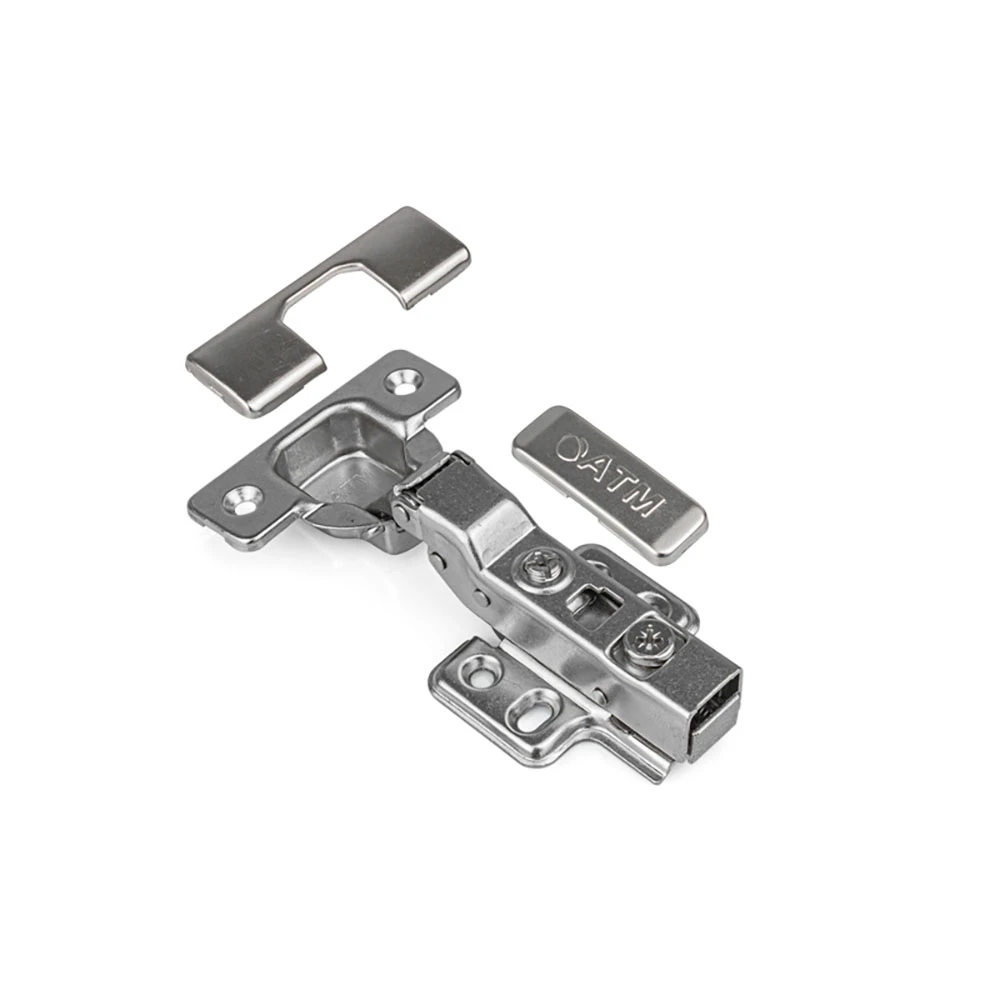

The set includes:
- XS-08 half overlay hinge - 1 piece
- H-0 CLIP-ON mounting plate - 1 piece
- 3.5x16 mm screws - 4 pieces
- Covers for the hinge arm and cup
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
