Overlay hinge ATM DS-90 H0 hydraulic
Leave feedback on the product
Product code: 37021
Zadzwoń i zamów
Opis

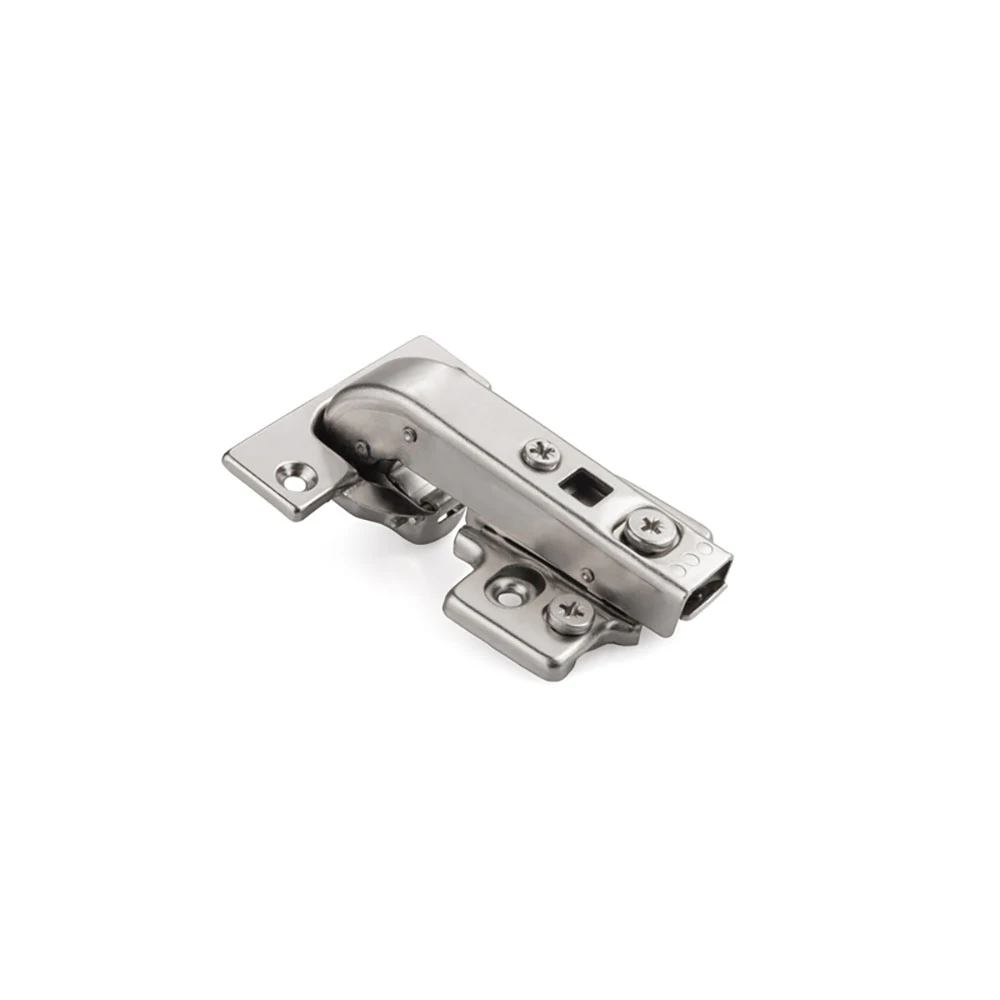

Blind corner cup hinge DS-90 hydraulic (H0 CLIP-ON mounting plate) - 3D adjustment, soft-close, made of nickel-plated steel with a guarantee of 50,000 operation cycles!
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ SoftClose system
The built-in SoftClose mechanism with a hydraulic cylinder ensures gentle and almost silent closing of the door, protecting the furniture from damage and increasing user comfort. To close the door, you only need to push it slightly - the self-closing mechanism with the hydraulic damper will complete the motion slowly and extremely quietly for you.
✔ 3D adjustment
Adjustment in three directions allows for precise alignment of the front in relation to the cabinet body, ensuring a perfect fit and aesthetic appearance.
✔ Clip-on mounting plate
DS-90 features a CLIP-ON mounting plate that enables fast and tool-free installation and removal of cabinet fronts. It greatly simplifies assembly, speeds up servicing, and provides convenient access during adjustments or repairs.
✔ Cam adjustment
Allows for easy door position correction without removing them - a convenient solution during installation and later adjustments.
✔ Responsive damping mechanism
The damping mechanism activates immediately upon closing, providing smooth and even motion.
✔ 50,000 cycle guarantee
The hinge has been tested for 50,000 opening and closing cycles, confirming its durability and reliability even under intensive use.
✔ Corrosion resistance
The hinge is made of nickel-plated steel, making it resistant to corrosion and ensuring long life even under demanding conditions.
Technical specifications:
- ☛ Brand: ATM
- ☛ Model: DS-90
- ☛ Color: Chrome
- ☛ Opening angle: 90°
- ☛ Cup hole diameter: 35 mm
- ☛ Hole spacing: 45 mm
- ☛ Mounting plate height: H0
- ☛ Mounting plate type: CLIP-ON
- ☛ Soft-close: Yes
- ☛ Material: Nickel-plated steel

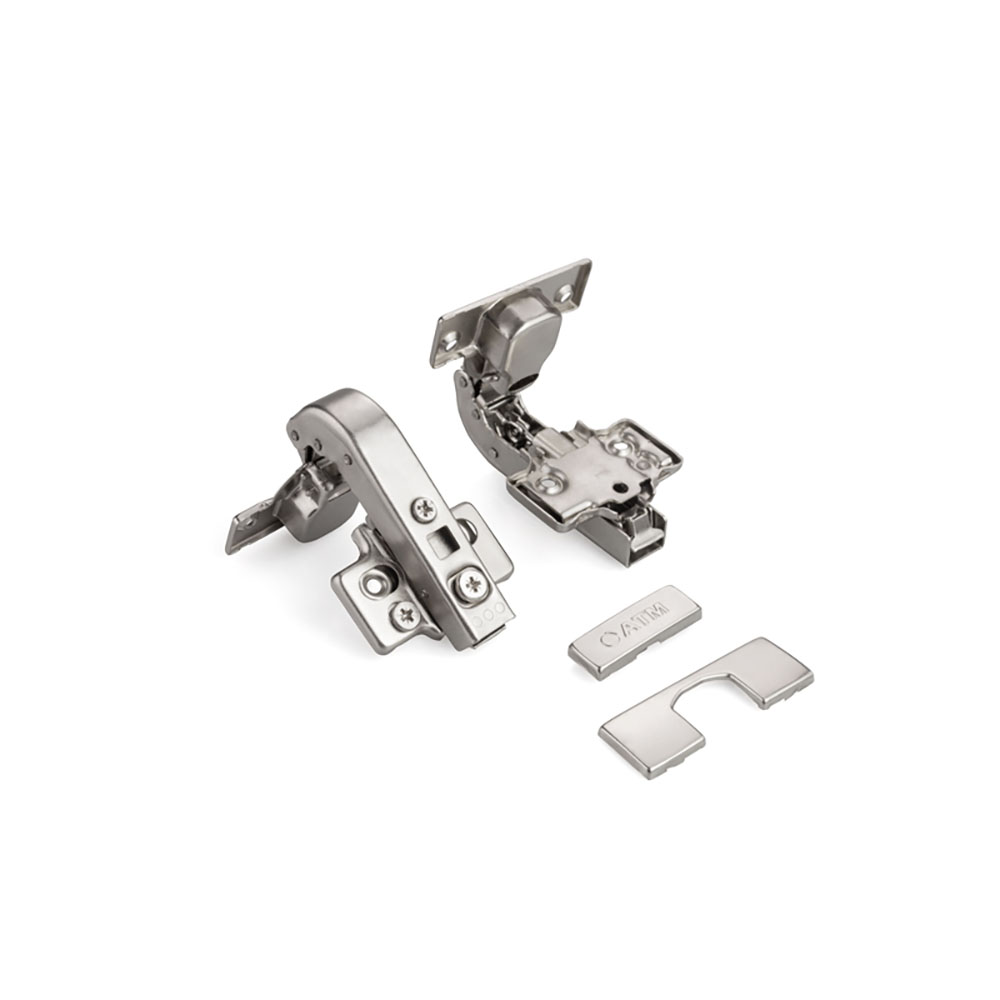

Set includes:
- Blind corner hinge DS-90 - 1 piece
- Mounting plate with cam adjustment (H0) - 1 piece
- 3.5x16 screws - 4 pieces

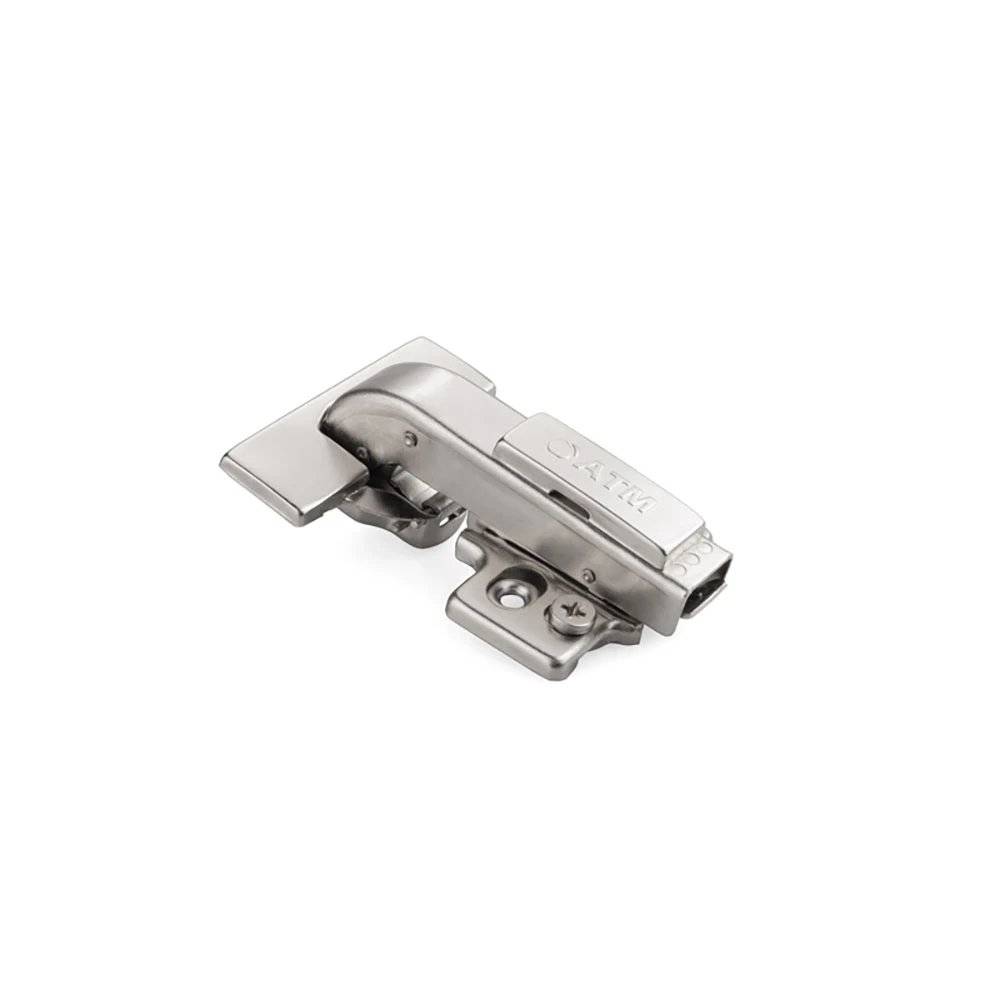

- Caps for the hinge arm and cup
Fittings tailored to your furniture
By choosing ATM products, our customers can be sure that the accessories will be perfectly suited to their needs. We offer a wide range of furniture fittings that are not only functional but also aesthetically made, making them easy to adapt to any interior style. By choosing our products, you invest in quality and solid workmanship. We invite you to explore our full product range.
